Ηλεκτροβάνες αυτονομίας μεγάλης αξιοπιστίας

ΑΠΕ-Θέρμανση > Συστήματα Θέρμανσης & ZNX > Αντλίες Θερμότητας & ΖΝΧ > Παρελκόμενα Αντλιών Θερμότητας
Δίοδη Βάνα Αυτονομίας KDV

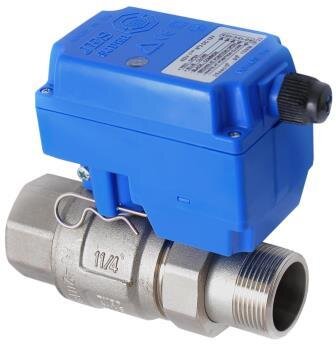

Δίοδη Ηλεκτροβάνα Αυτονομίας BALL CRANE WITH ELECTRIC DRIVE KDV
Management: three-position; 230V AC, 24V AC, 12V DC
Rated voltage range: 207 ... 253V AC; 20 ... 25V AC; 10.8 ... 15V DC
Ροπή-Twisting moment: 10Nm
Χρόνος Ανταπόκρισης-Response time: 25 seconds
Power: 230, 24 V –5 W; 12 V - 1,5 W
Electrical connection: cable 1m. 3x0.75 mm2
Βαθμός Προστασίας- Degree of protection: IP22
Noise level (work): <40 db
Operating fluid temperature: 2 ... 110 °C
Θερμοκρασία Λειτουργίας-Ambient temperature: -25 ... 55 °C
Storage temperature: -30 ... 80 °C
Humidity of the environment: 5 ..... 95% rF does not condense
The service life of complete cycles open-closed: 70,000 for KDV 230V; 100,000 for KDV 24V, 12V
Gear Gear Material: Steel
Status indication open / closed: for 230V and 24V, the LED is on in the “open” position; for 12V multi-color indication of the states (red, blue, purple).
All plastic parts are made of non-combustible material.
Power: 230 V - 5 W; 24 V - 5W; 12 V - 1,5 W
Full bore crane.
Diameter of KDV series: ½, ¾, 1, 1 ¼, 1 1/2, 2.
Execution: two-way.
Πίεση-Pressure: 16 bar
Seal material in the crane: EPDM = 150 ... 180 °C
Body: CW617 brass
Rod: СW602N anti-corrosion
Ball: CW602N anti-corrosion
Leak in the closed valve: 0%
Διάρκεια Εγγύησης: 5 έτη
Jess KVD

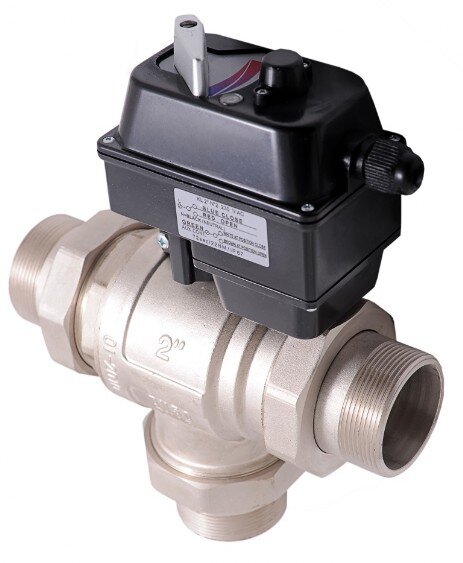

Tρίοδη Ηλεκτροβάνα Αυτονομίας BALL CRANE WITH ELECTRIC DRIVE KL
Management: two-three-position :230V AC or 24V AC / DC
Rated voltage range: 207 ... 253V AC; 19.2 ... 28.8V AC / DC
Ροπή- The twisting moment: 22 Nanometers for KL 230V; 20 Nm for KL 24V
Χρόνος Ανταπόκρισης- Response time: 25seconds
Electrical connection: cable 1m. 6x0.75 mm2
Βαθμός Προστασία- Degree of protection: IP67
Protection class: II for KD 230V; III for KD 24V
Noise level (work): <40 db
Operating fluid temperature: -10 ° ... 110 °C
Τρίοδη Βάνα Αυτονομίας KL
Θερμοκρασία Λειτουργίας-Ambient temperature:-25 °.. 55 °C
Storage temperature: -30° ... 80 °C
Humidity of the environment: 5 ..... 95% rF does not condense
Service life of complete cycles 0 ° -90 ° -0 °: 70,000 for KL 230V; 100,000 for KL 24V
Overload protection: yes
Gear Gear Material: Steel
Status Indication: LED with multi-color status indication
(red, blue, purple) and microswitches.
All plastic parts are made of non-combustible material.
Power: 230 V - 5 W; 24 V - 1,9 W
Full bore crane.
Diameter series KL: ¾, 1, 1 ¼, 1 ½, 2.
Execution: three-way, L type.
Πίεση-Pressure: 16 bar
Seal material in the crane: PTFE = -180 ° ... 250 °C
Body: CW617 brass
Rod: СW602N anti-corrosion
Ball: CW602N anti-corrosion
Διάρκεια Εγγύησης: 5 έτη
Τριοδη ηλεκτροβάνα JESS KL
