Mennekes Σταθμοί φόρτισης αυτοκινήτων,car charger

Φωτοβολταϊκά > Ηλεκτροκίνηση
Από ένα μικρό κατάστημα ηλεκτρικών ειδών σε ένα διεθνή εξειδικευμένο προσωπικό, ο ενθουσιασμός για καινοτομία, προϊόντα υψηλής απόδοσης και αξιόπιστα προϊόντα και η δέσμευση για την ποιότητα αποτελούν τα χαρακτηριστικά της 80χρονης ιστορίας αυτού του γερμανικού κατασκευαστή.
Mennekes Charging Station_Logo
Η MENNEKES Stecker GmbH & Co. KG θέτει πρότυπα με το βύσμα φόρτισης τύπου "Τύπου 2" το οποίο εισήγαγε το 2014. Σήμερα, το βύσμα Τύπου 2 είναι το πρότυπο βύσμα για τη φόρτιση ηλεκτρικών αυτοκινήτων σε ολόκληρη την Ευρώπη.
Η MENNEKES αποδεικνύει την ευελιξία και την αξιοπιστία των προϊόντων της με περισσότερους από 1.000 υπαλλήλους παγκοσμίως και δραστηριότητες πωλήσεων σε συνολικά 90 χώρες. Ως κατασκευαστής ποιότητας, αποδίδει μεγάλη σημασία σε φιλικές προς τον πελάτη και φιλικές προς το χρήστη λύσεις. Η υποδομή χρέωσης και το νέφος φόρτισης συμμορφώνονται με τα νόμιμα πρότυπα μέτρησης και καθιστούν τη χρέωση απλή και ξεκάθαρη.
MENNEKES Charge App
MENNEKES Elektromobilität
MENNEKES AMTRON®
AMTRON® is a family of wallbox chargers designed, produced and manufactured by MENNEKES in Germany.  Drawing on their wealth of knowledge and experience in electrical engineering, AMTRON® has been carefully designed with use and functionality in mind. AMTRON® boasts a range of functional features, such as the smart cable storage and easily accessible RCD reset button, that ensure the unit is practical as well as attractive.
AMTRON® can be mounted on a wall or on an optional fixed column so flexibility exists for different installation conditions. Some AMTRON® models host the latest 'smart' technology and use the 'OCPP protocol' so installation is not just restricted to domestic use - it is also ideal for business or commercial use in a 'semi-public' environment.
We have 6 variants of AMTRON® for sale with varying features such as key entry, RFID access and a calibrated energy meter. Each variant is available in several power ratings with either a socket or tethered cable.
Mennekes Charging Station Amtron
A simple but robust charging point with 3.7kW power ratings- just plug in and charging starts straight away. Type 2 socket or tethered 7.5-metre Type 2 cable.No access control for charging.
Features:
  • Status information through LED info bar
  • Stop button
As AMTRON® Start, but with key access. Supplied with two keys, the key can be removed in the ON (I) or OFF (0) position, providing simple access control to your charging point.   There is also a 'one-shot' mode - turn the key to position 'II' and then back to '0' and remove it: Οnly one charging session will be carried out.  Ideal for attended authorisation at hotels, etc.
Versions with different charge power ratings for both single and three phase use.
Features:
  • Key switch
  • Status information through LED info bar
  • Reset button
As AMTRON® Standard, but also includes a calibrated 'MID' meter, visible through the front panel, to keep track of energy consumption.   Some models include the safety RCD within AMTRON® Basic, resettable via the front panel button.
3 phase 22 kW version
Features:
  • Integrated RCD Type B
  • Integrated calibrated digital energy meter
  • Key switch
  • Status information through LED info bar
  • Button for reset function
R Variant Additional Features:
  • Residual current device (RCD) 40 A, 4 p, type b (sensitive to universal currents)
  • Multi-function button
  • RCD test
  • Re-activating of RCD
  • Reset function
Mennekes σταθμός φόρτισης Amtron
Mennekes Charging Station Amtron
Mennekes σταθμός φόρτισης  Amtron
AMTRON® Xtra does away with key access, instead you can use the free MENNEKES Charge App on your Android or iOS device to turn it on & off, vary the charge rate, schedule charging for off-peak times, download usage reports (including kWh consumption) as PDF or Excel spreadsheet.
Versions with different power ratings, both connector types, single and three phase.
Features:
  • Integrated calibrated digital energy meter
  • Status information through LED info bar
  • Integration into the home network over WLAN / LAN
  • RS 485 interface for wired networking with a MENNEKES eMobility-Gateway
  • Multi-function button
  • Stop function (adjustable parameters; deactivated by default)
  • Reset function
  • Unlocking function in case of power failure (only for devices with charging socket type 2)
Mennekes Charging Station Amtron
As for AMTRON® Xtra, with the addition of an RFID reader for multiple users/vehicles - track the usage per driver in a multi-car household, apartment block or a small business.
Versions with different power ratings, single and three phase.
Features:
  • Integrated RCD (Type A, single phase ; Type B three phase)
  • Integrated calibrated digital energy meter
  • RFID key
  • Status information through LED info bar
  • Integration into the home network over WLAN / LAN
  • RS 485 interface for wired networking with a MENNEKES eMobility-Gateway
  • Multi-function button
  • Stop function (adjustable parameters; deactivated by default)
  • Reset function
  • RCD test
  • Re-activating of RCD
  • Unlocking function in case of power failure (only for devices with charging socket type 2)
Mennekes Charging Station Amtron
The latest generation 'smart' AMTRON®.  Connect via Drivenergy Cloud to take control of your charging. Type 2 socket or tethered 7.5-metre Type 2 cable. Integrated RCD optional.  Internal 6mA DC fault detection complies with latest Wiring Regulations. OLEV grant approval pending.
Mennekes Charging Station Amtron Compact
AMTRON® Compact combines stylish AMTRON® design with high-quality workmanship to produce a sleek but compact wall mounted charger. Installation of a charging point can sometimes be made challenging by the size of the wallbox, but the AMTRON® Compact is the perfect solution to any tight parking spot. The 5-metre tethered 'Type 2' cable ensures that the charger is future-proof, and is compatible with all new upcoming electric vehicles. The wallbox has a charging capacity of 3.7kW (single-phase) or 11kW (three-phase), so is perfect for overnight charging at home.
Key Features
  • Plug in and charge, no authorisation required.
  • Optional remotely wired on/off switch e.g. key switch
  • Status indicated on LED information bar.
  • 5-metre tethered cable connection.
  • MENNEKES Type 2 connector.
  • Smart cable storage behind the unit.
  • Low standby power consumption.
  • Charging capacity of 3.7kW (16A single-phase) or 11kW (16A three-phase).
  • Compact design; 370mm x 210mm x 150mm.
  • Suitable for outdoor or indoor installation.
Mennekes AMTRON® Accessories
Για εφαρμογή με τα μοντέλα AMTRON® Xtra και Premium.
  • The E-Mobility Gateway networks charging points together with a backend system,
  • Can be used to connect up to 16 charging points using a RS485-BUS.
  • OCPP 1.5 compliant.
  • Communicates to the backend system using a 3G/4G SIM card or a LAN network connection.
  • Can be used to network a number of different MENNEKES chargepoints together, eg. AMTRON® Xtra, AMTRON® Premium, Wallbox Premium and Premium columns.
  • Integrated load management.
  • Robust but sleek housing.
  • Lockable.
  • Suitable for outdoor or indoor installation.
  • 2 Gateway models; MKS-310551 uses a standard key and lock and MKS-310561 uses a unique key and lock.

Mennekes e-mobility Gateway
Cables
Is a premium quality, dual socket charging column suited for fleet, public and semi-public use.  It is the latest charging station to be designed, developed and manufactured by MENNEKES, and so it benefits from decades of experience in the automotive and electrical industries.  AMEDIO Professional+ can also be networked with AMTRON Professional+ wallboxes to create a network of wall mount and ground mounted chargers.
Key Features
  • Designed for business, fleet, or commerical use.
  • 2x 22kW charging sockets.
  • Single or three phase electricity connection.
  • LED indicator display.
  • RFID operation.
  • DC leakage detection.
  • MID certified energy meter per socket.
  • Energy management functionality.
  • Networkable via Ethernet or 3G/4G connection.
  • Integrated circuit breakers.
  • Residual Current Device (Type A) and DC current fault monitoring.
  • Integrated modem for data transfer according to OCPP 1.6j.
  • Type 1 or Type 2 charging cable connection via Type 2 socket.
  • Optional: Flexible billing when connected to a backend system like Drivenergy Cloud.
  • Optional: Plug and Charge (PnC) functionality.

Mennekes e-mobility Amedio
MENNEKES Charging Columns
MENNEKES charging columns are designed for fully public-facing charging.  A proven design, featuring robust construction, high security locks, shuttered sockets and simple, intuitive user interface.
Key Features (depending on model)
  • Designed for commercial, public facing use.
  • 2x 22kW charging sockets.
  • Operational status is delivered via LCD text display*.
  • All steel bodywork, galvanised and powder coated.
  • Available in black or grey as standard, or any RAL colour as a cost option.
Mennekes e-mobility charging columns
  • Full panel graphics possible.
  • Single or three phase electricity connection.
  • Optional Surge Protection ("Overvoltage" models)
  • RFID operation.
  • Type 1 or Type 2 charging cable connection via an untethered type 2 socket.
  • Flexible billing when connected to a backend system like Drivenergy Cloud.
  • Networkable via Ethernet connection.
  • OCPP compliant (OCPP1.5)
  • Visible MID meter per socket, compliant with the Alternative Fuels Infrastructure Directive.
Mennekes e-mobility charging columns
Mennekes e-mobility charging columns
Key operated sockets for simple yet robust charging.  Ideal for fleets and service vehicles charged in public areas.
Visible energy meters for manual tracking of energy consumption.
(Stand alone, not networkable).
Premium Column is a robust, high quality charging column, for car parks, kerbside and similar locations.  Automatically locking charging sockets resist tampering when not in use.  Up to 22kW from each socket.
Up to 8 Premium columns (16 sockets) can be grouped together with a single 'Gateway' to provide a connection to a backend, such as Drivenergy Cloud, for payment solutions.
Smart Column is identical to Premium Column, but incorporates the Gateway module within, giving a stand-alone solution that can connect directly to Drivenergy Cloud via 3G/4G or wired network connection.
This connection can be shared with up to 7 nearby Premium Columns, either from the outset or during subsequent expansion.

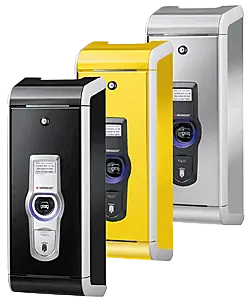

MENNEKES Wallbox
Drawing on the excellent design features of the Charging Columns, MENNEKES Wallbox provides a single socket option for wall mounting, ideal for smaller workplace car parks, underground parking and multi-storey car parks.
Key Features
  • Designed for commercial, fleet or public facing use.
  • Single 22kW charging socket.
  • All steel bodywork, galvanised and powder coated.
  • Available in black or grey as standard, or any RAL colour as a cost option.
  • Full panel graphics possible.
  • Wiring options from above and below give flexibility for different installation conditions.
  • Single or three phase electricity connection.
  • Type 1 or Type 2 charging cable connection via an untethered type 2 socket.
Wallbox Premium also has:
  • Operational status is delivered via LCD text display.
  • RFID operation.
  • Flexible billing when connected to a backend system like Drivenergy Cloud.
  • To be used with Gateway or networked to a MENNEKES Smart column.
Mennekes e-mobility wall box
Mennekes e-mobility wall box
Key operated 22kW charging for simple fleet or service vehicle charging in a heavy duty enclosure.
Shuttered Type 2 socket only accessible when 'unlocked' by key.
Includes circuit breakers and RCD within enclosure.
(Stand alone operation.  Not networkable).
Intelligent 22kW charging point, with LCD text display and visible energy meter (complies with Alternative Fuel Infrastructure Directive).
Automatically locking charging socket resists tampering when not in use. Up to 16 Premium Wallboxes (or a combination with up to 7 Premium Columns) can be grouped together with a single 'Gateway' to provide a connection to a backend, such as Drivenergy Cloud, for payment solutions and/or monitoring.
